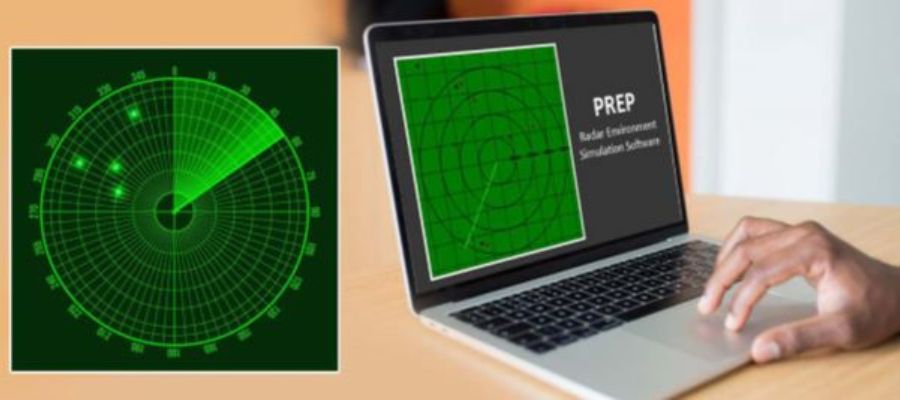

PREUBWSIM is windows based simulation platform for beginners to get knowledge in pulse radar engine. The software provides user editable parameter blocks thus candidate can do the parametric analysis & understand the better concept of pulse radar.Software consist of three main section RADAR control BLOCK, Environmental condition block PPI display. Each sections have their relative editable I tunable parametric button which helps to tackle the various environmental conditions like clutter noise, low RCS objects system noise.

The radar can perform a match filter over the received signal.The radar analyzes each range cell in the buffer in search of a target .Thesoftware consist alarms for target motion and out of range conditions .itconsumes 2GB of RAM and need graphic card. For each radar pulse the simulation calculates the returns that the radar will receive from all the targets according to the radar formula (taking into account transmission power, antenna gain, targets distance & targets RCS).The simulation calculates the amplitude & phase of the return signal (according to the IF frequency).The simulation generates random targets (coordinates, velocity, acceleration & Radar Cross Section (RCS)

Transmitter Section  With facility to change the PRI, staggered PRI pulse width and Transmission Power, Radar bandwidth.

Antenna section             Velocity setting (SCAN rotation), Termination of antenna to understand digitalizer noise.

Receiver Section   With Facility to change the, BW, Gain and Max. Range, Detection Threshold, Sample rate, Match filter, CFAR.

Radar environment                  With facility to simulate various Radar Environment like to place mountains, Clutter like surface, Volume and Rain & Losses like RF Link loss, RCS – should have libraries of various objects like Aeroplane,Ship,Man bicycle etc.
