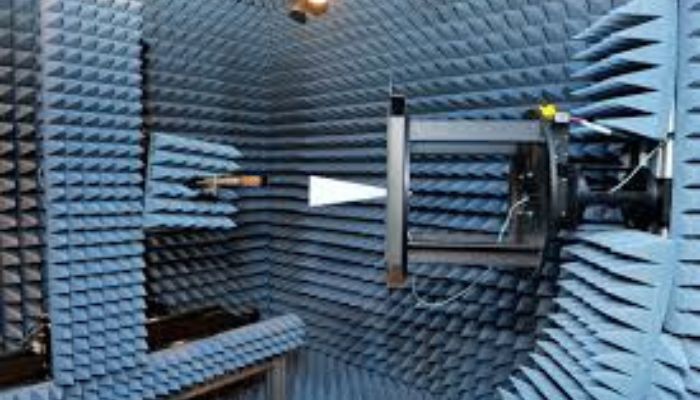

An RF & Antenna Lab is a specialized laboratory setup where Radio Frequency (RF) and antenna-related systems are designed, tested, and characterized. These labs are essential for wireless communication, aerospace, defense, automotive, and IoT development.

Typical Experiments & Measurements

1. Antenna Parameters Measurement

   • Gain, directivity, radiation pattern, bandwidth, polarization, VSWR.

2. S-Parameter Analysis

   • Reflection (S11), transmission (S21) for RF components.

3. RF Amplifier Testing

   • Power gain, linearity, P1dB, IP3.

4. Filter Design and Testing

   • Bandpass, lowpass, and highpass filter characteristics.
