Indication Doppler Radar
The KOKOMTI24G200F Doppler series radars, which are short-range speed reporting radars of moving targets, are adopted to watch ground objects (person , vehicles or group of them). They are normally tripod mounted. Especially for motion detection, speed(200km/h), direction, or range reporting.It comes in an all weather IP67 enclosure for mounting outdoors. Data is port over a USB interface which also provides power (no external power adapter) . A simple API provides control over the reporting format, sample rate, module power levels, and additional features. Compact in size & weight thus can be hold by robotic arm. The sensor carries full FCC/IC regulatory approval and comes with a USB cable.The Radar is having Doppler architecture thus applicable for non stationary objects. According to ICNIRP it is safe radar to be utilize in civilian area or indoor lab purposes .
K-Band Moving Target Indication Doppler Radar
Traffic Doppler radar Not for Air Traffic / Speed gun purpose ( License Free) KOKOMTI24G200F
Applications
- Useful in ROV application for object detection its motion speed analysis
- Easily interfaced in existing embedded design or products for drone.
- Useful in SPM (Special Purpose Machine) to avoid collision and better reliability.
- GUI / API can be merged in the existing software.
- It can easily used in speed gun radar application.
- Researcher or GUI developer OR embedded developer.
Specifications
| Parameters | Specifications |
|---|---|
|
Detection Range |
70m to 100m (Vehicles,150 to 220 km/h) |
|
Min.detection range |
0.5m |
|
Coordinating accuracy |
20°±0.2° (Azimuth), 15°±0.5° (Elevation) |
|
Beam-Width |
330g |
|

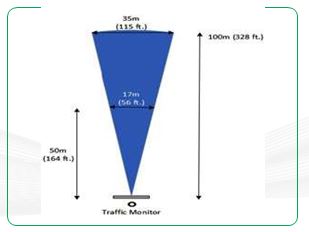

Detection Range |
1-100m (3-328’) |
|
Speed reporting |
138mph (222kmh) or higher |
|
Speed Accurate |
To within 1mph (1.6kmh) |
|
Direction Reporting |
Inbound/Outbound |
|
Display Unit |
Laptop based API no separate display |
|

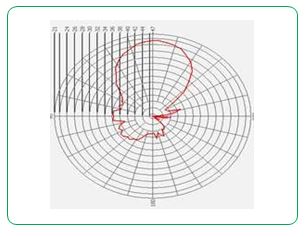

Directional Antenna |
Micro-strip Patch Array Antenna |
|
Active Power |
+31dBm |
|
Range Reporting |
|
|
USB interface with simple API control |
|
|
Small form factor 130 x 130 x 35 mm |
|
|
Non rotatable radar mount |
|
|
Operating Environments |
|
|
Temperature |
-40 to +50deg |
|
Humidity |
98%(35) |

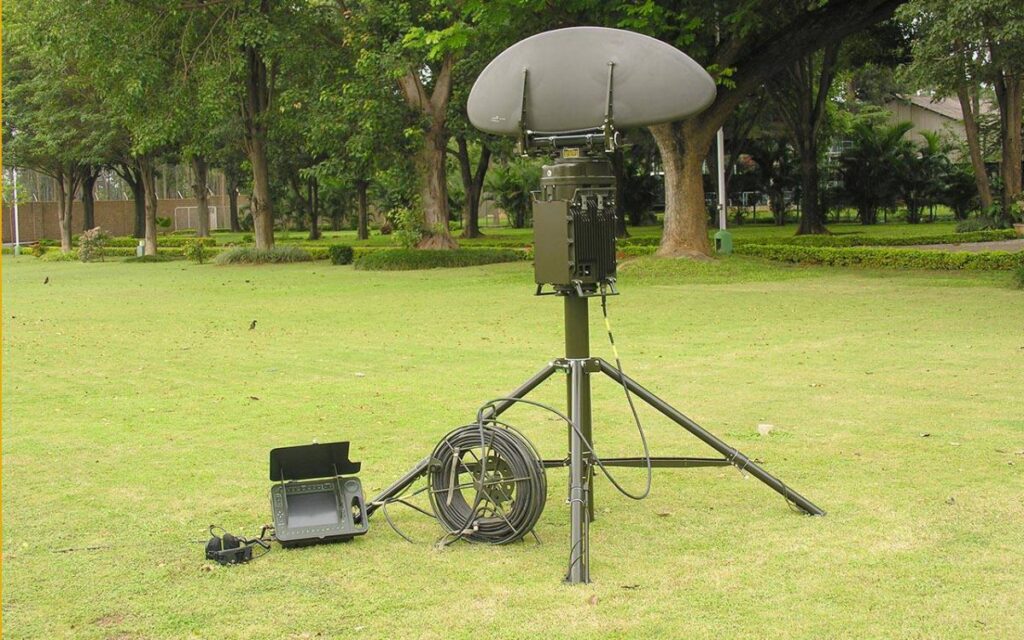

Extendable Tripod Stand
Telescopic tripod stand, of anodized aluminum, to hold the radar antenna at the appropriate height.
The radar front end is easy to incorporate in existing embedded
system. As per requirement, Developer can right its own GUI and do the merge the radar screen in his existing program. Easily interface with raspberry pi and acquire target data from USB port . Compatible with all platform like Windows based /MATLAB /LABVIEW /Paython
.Sample code is provided with radar unit .
Extendable Tripod Stand
- Speed measurement of vehicle or Moving target 1km/h to 220km/h
- Applications Security Detection Traffic Monitor Object Counting
- Range Measurement
- Motion Estimation
- Direction Estimation
LIST OF DELIVERABLES
- Traffic Radar Unit : 1Set
- USB cable : 1Set
- Laptop (Optional) : 1PC
- Tripod (Optional) : 1Set
