Doppler Radar

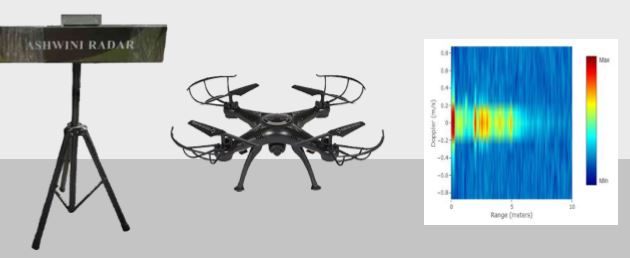

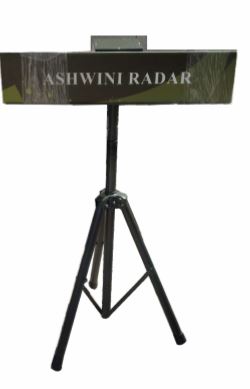

AFMCW86G40f is “FMCW based 86GHz-MIMO based Radar Engine”. This radar transmitting low power (+13dbm) and having small weight compact non rotating indoor radar for ranging application . License is not required to run or purchase or re-sale Radar Software is compatible with Windows 7 and higher versions .the echo raw data is sending to PC through USB 2.0 cable . Radar placed on Tripod with battery backup of 1 hours thus it is easily moved within the campus or Lab. Stationary & moving targets like drone , corner Reflectors are utilize during experimentation .before installation, necessary environments of lab also taken care like ESD floor mat , Non reflecting wall paper, Window curtains, Glass coating. Simple USB 2.0 radar PPI screen/ Output presented on 24inch LCD screen.The Radar is rapidly configure install with help of browser based API.The radar is configure in various way for different experiments and research activity .

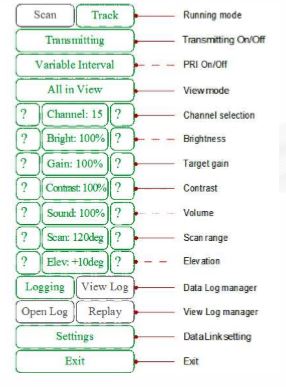

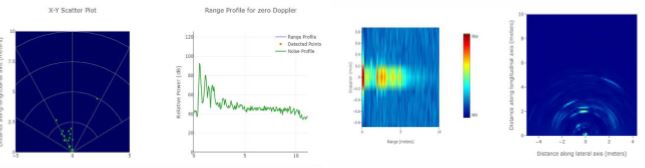

- Measurements Target Range Vs Angle Using PPI Chart
- Multiple Target & Echo Observation Using PPI Chart
- Target Motion Inbound or Outbound Using Spectrogram Chart
- Echo Magnitude Representation Over Time Using A Scope Chart
- Doppler Shift / Velocity of Target Using B Scope Chart
- Distance of Lateral Axis Vs Longitudinal Axis Using 2D Chart
W- BAND FMCW Doppler Radar
(Non Licenses Category) ASHWINI – MIMO RADAR AFMCW86G40f-VER19.0
Benefit of Milli -Meter Wave Band in Radar?
RCS is the function of area of reflective surface available in front of Radar. Smaller wavelength is cable to attained smaller objects like blade of drone. Targets in motion relative to the radar cause the return signal frequency to be shifted. A Doppler shift only occurs when the relative velocity vector has a radial component. In general there will be both radial and tangential components to the velocity. Thus the wavelength is too small so that wider Doppler Shift & Wider Velocity of targets are detected so suitable for industrial applications.
Specifications
| FREQUENCY | W BAND 76 GHz to 82 GHz MONO-STATIC | |
|---|---|---|
|
No of Transmitter |
4 |
|
|
No of Receiver |
3 |
|
|
Antenna Array |
TX (4 X4 Matrix) Rx (4 X4 matrix) With Matching & BALUN |
|
|
Power |
+13dBm |
|
|
Modulation |
FM |
|
|
Battery Back Up |
1 Hour |
|
|
Interface |
USB 2.0 |
|
|
Weight |
2.2kg |
|
|
Size |
600 mm Length RADOME Size |
|
|
Synchronization Signal |
Pulse are Synchronized with Chirp |
|
|
Chirp Variation |
2 Ghz @ Center |
|
|
Range of Ambiguity |
1cm |
|
|
Range |
30 to 40 Feet |
|
|
Velocity |
1 m/s to 110 m/s |
|
|
Velocity Accuracy |
2 m/s
|
|
|
Range Resolution |
12 cm |
|
|
Software |
Windows 7, Windows 10 |
|
|
RADAR Display |
A Scope, B Scope, X-Y Plot Spectrogram |
|
|
Doppler Shift |
Yes Possible |
|
|
Raw Echo |
Yes Possible |
|
|
Range |
Yes Possible |
|
|
Angle Vs Target |
Yes Possible |
|
|
Multiple Target Vs Range |
Yes Possible |
|
Experiment List
1. Detection of Range for single and multiple targets with minimal resolution.
2. Detection of maximum & minimum Range for small RCS objects using PPI chart.
3. Stationary clutter & noise estimation in open air channel. 4. Detection of echo received from periodic targets like pendulum, Fan using A scope.
5. Observation of echo from various metallic shapes like reflector, plate spectrogram plot
6. Calculation of Doppler shift of Buzzer or alaram or FAN using B scope .
7. Calculation of Azimuth Angle Vs Target arrival of human body using PPI chart.
8. Prediction of ambiguity range for small RCS objects
9. Inbound and outbound Motion detection.
10. Real time target observation of vehicle on the service road of collage
11. Detection of Drone movement in open area of collage
Outcome and Object
- To boost Cognitive Levels of students in area of Radar & its relative applications
- The theory, practical experiences and relevant soft skills associated with this course are to be taught and implemented.
- Hands on practice over radar engine.
- To gain knowledge on the different types of Radar Configuration, interpret radar based system for range detection and the basic understanding of Radar transmitter and receiver chain.
- Practical execution of UG student / PG student
- To Attempt the syllabus/ curriculum in superior approach.
Possible Research Outcome
- Report Generation on Different Types of Clutters and NoisePresent in MIMO Radar
- MIMO Radar Engine Vs SISO Radar Engine.
- Determination of Stealth Material & RCS Calculation on W band.
- Limitations of Microwave Signals vs Millimeter Wave Band.
| TONE OF A DOPPLER AUDIO SIGNAL | TARGET IDENTIFIED |
|---|---|
|
Monotonous noise |
Background noise |
|
Irregular loud noise (Low frequency) |
Branches, leaves of grasses swayed in the wind |
|
Monotonous high frequency (1000~1700Hz) sound |
Siow moving vehicle (Line-of-Sight speed 10~25km/h) |
|
Monotonous high frequency (1000~1700Hz) sound |
Fast moving vehicle (40-90km/h) |
|
Intermittent low lone signal (sound as walking on the dry log! |
Pedestrian |
|
Intermittent mid-tone signal (similar to the case (5), but higher in freq.) |
Running Personnel |
